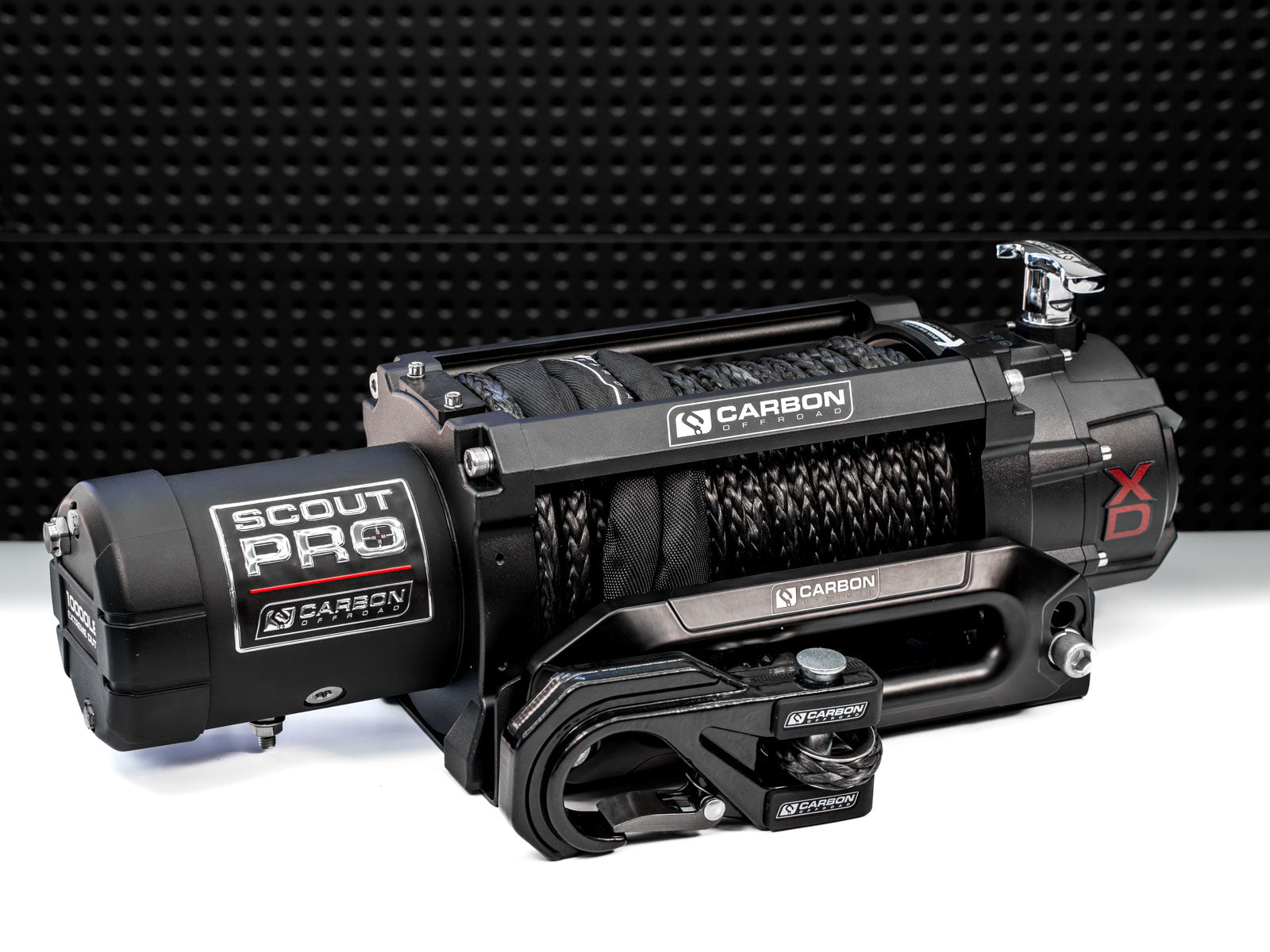

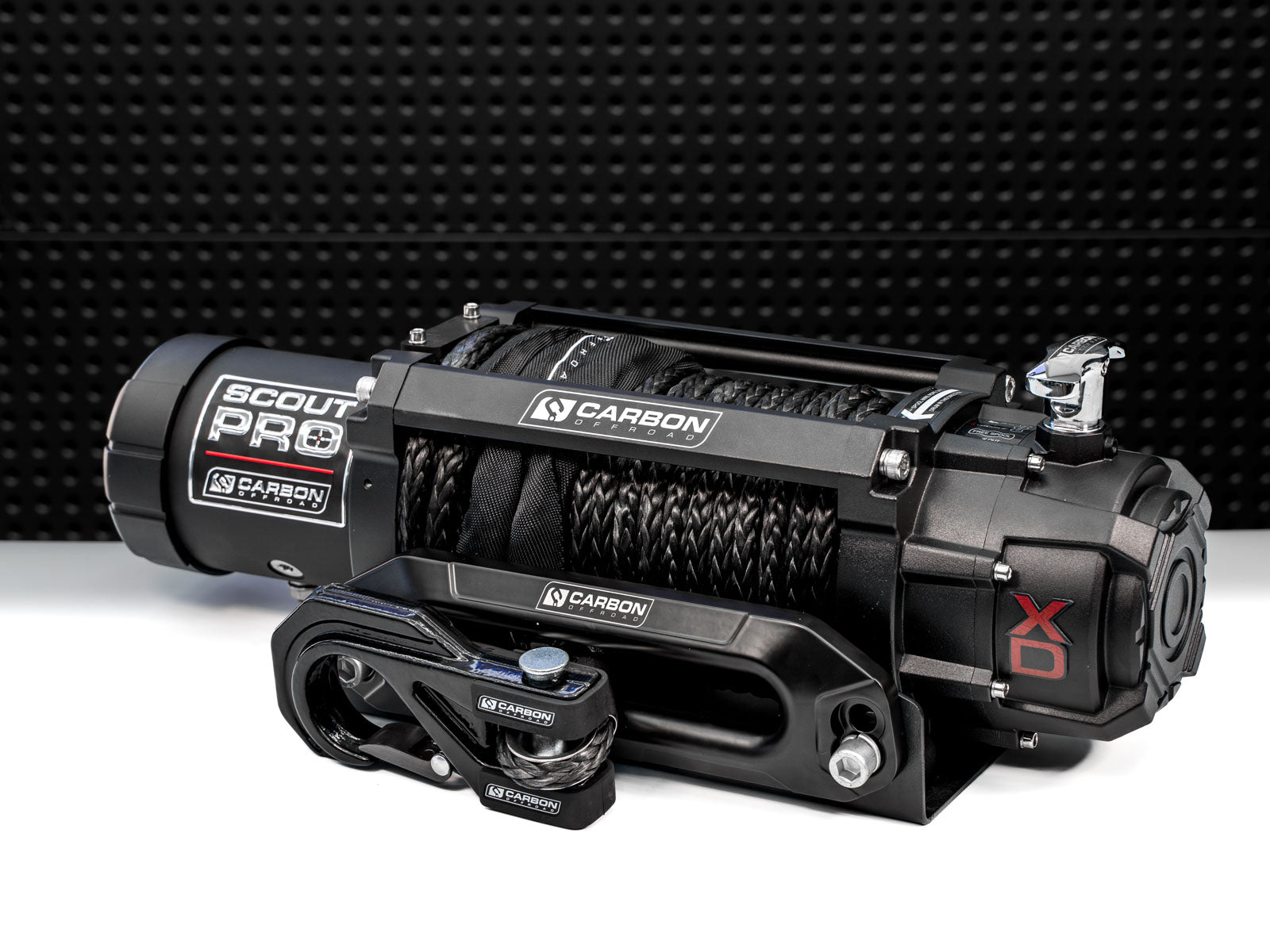

Carbon Scout Pro - 10000lb Winch V3

CW-XD10BLU

$1,099.00
Tax included. Shipping calculated at checkout.

Carbon XD10 Winch - A compact, 10,000 lb-rated winch designed for frequent, heavy-duty offroad use. Features oversized gearsets for strength, premium accessories like the Mega-Pro Rope Thimble and Fairlead, and a rugged build to keep your vehicle within spec and your warranty intact.

Fast 24-Hour Dispatch
100% Australian Owned
Local Customer Support
Secure Checkout

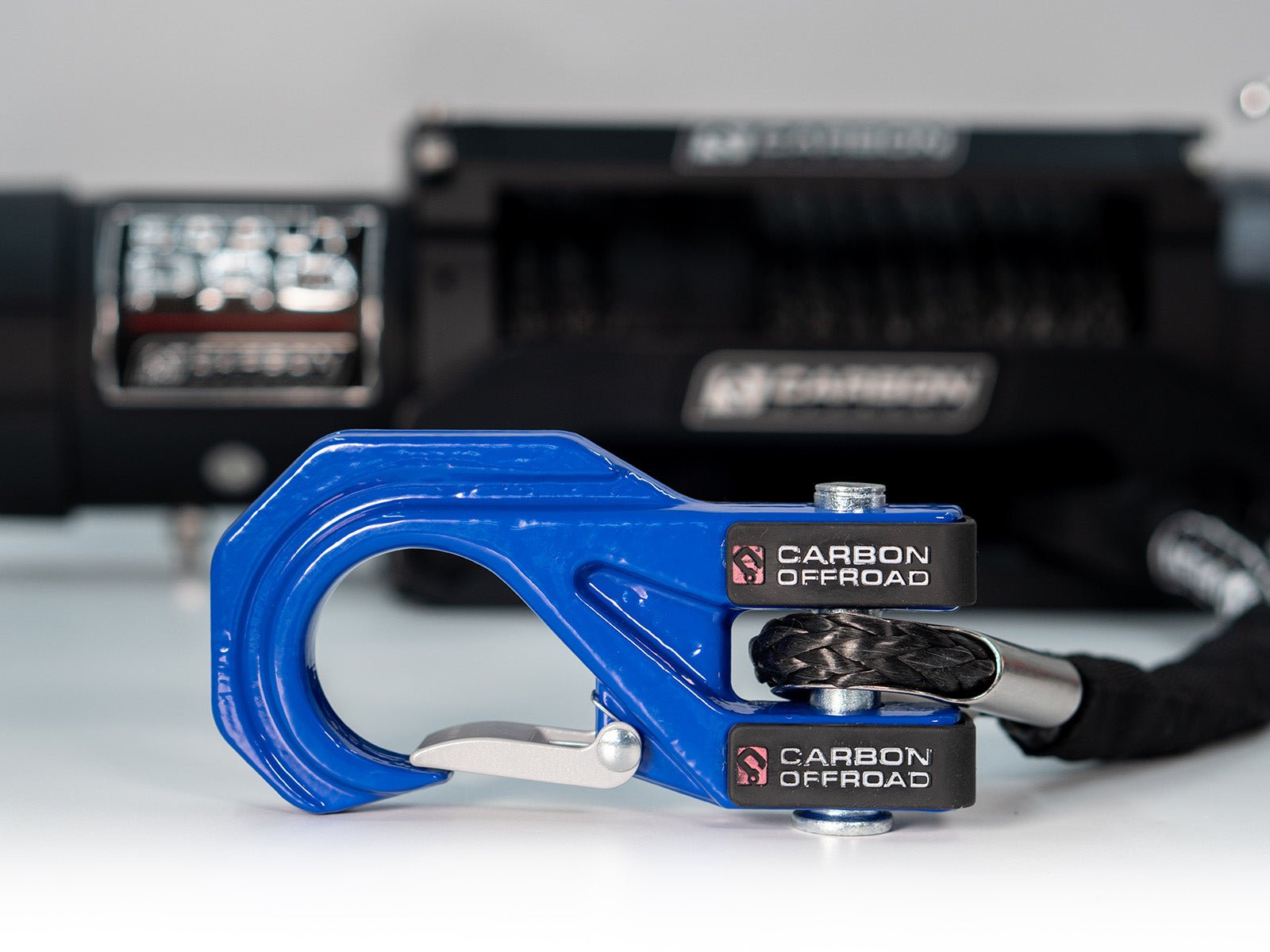

Carbon Offroad Mega Pro Winch Hook (Choose Your Colour) | BLUE
Quantity
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Carbon Offroad

Carbon Scout Pro - 10000lb Winch V3

BLUE

$1,099.00

No Road? No Problem.

The Carbon 10K is the ultimate insurance policy. It gives you the power to push past the turn-around point, explore deeper and still make it home.

Carbon Scout Pro - 15000lb Winch V3 - CW - XD15BLK 5

Engineered For the Extreme

The The Carbon 10K is IP68 waterproof, ready to pull and backed by a relentless 5-year water ingress warranty.

No Road? No Problem.

The Carbon 10K is the ultimate insurance policy. It gives you the power to push past the turn-around point, explore deeper and still make it home.

Carbon Scout Pro - 15000lb Winch V3 - CW - XD15BLK 5

Engineered For the Extreme

The The Carbon 10K is IP68 waterproof, ready to pull and backed by a relentless 5-year water ingress warranty.

Wired and Wireless Remote Included

Complete Wiring and Accessories Kit

Includes everything you need, dual remotes, and a 5-year electrical warranty.

MegaPro Hook and Fairlead Included

Limited Lifetime Mechanical Warranty

The Carbon 10K is backed by a Limited Lifetime Mechanical Warranty covering the geartrain, brake and drum.

Wired and Wireless Remote Included

MegaPro Hook and Fairlead Included

Complete Wiring and Accessories Kit

Includes everything you need, dual remotes, and a 5-year electrical warranty.

Limited Lifetime Mechanical Warranty

The Carbon 10K is backed by a Limited Lifetime Mechanical Warranty covering the geartrain, brake and drum.

Extreme Duty Recovery Power

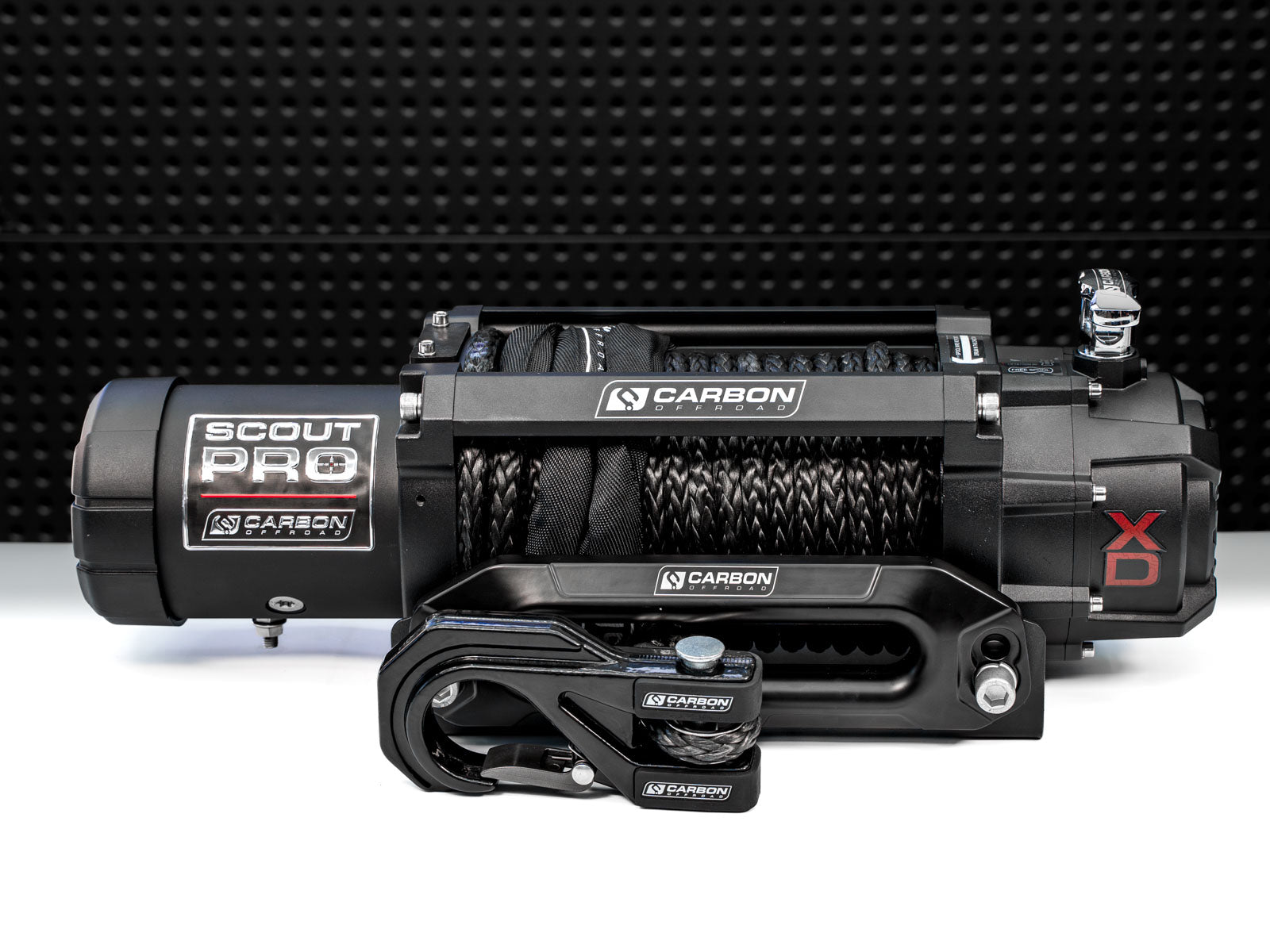

The Carbon Offroad Scout Pro XD10 is a 12V, 4536kg (10000lbs) electric recovery winch built to handle regular, heavy-duty offroad recovery work.

Overview

Engineered for the Outback. Got a bull bar rated to 10K? Stay within spec and retain your warranty with the Carbon XD10. As part of the Scout Pro Extreme Duty Performance Series, it is designed specifically to suit heavier vehicles operating in harsh Australian conditions.

You can also upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, which is specifically designed for seamless integration with Carbon Offroad 12K and Scout Pro winches.

Features

  • Extreme Duty Construction: Built to the exacting standards of the Scout Pro Extreme Duty Performance Series for maximum reliability, featuring a matte black powder coat finish and 316 stainless steel hardware.

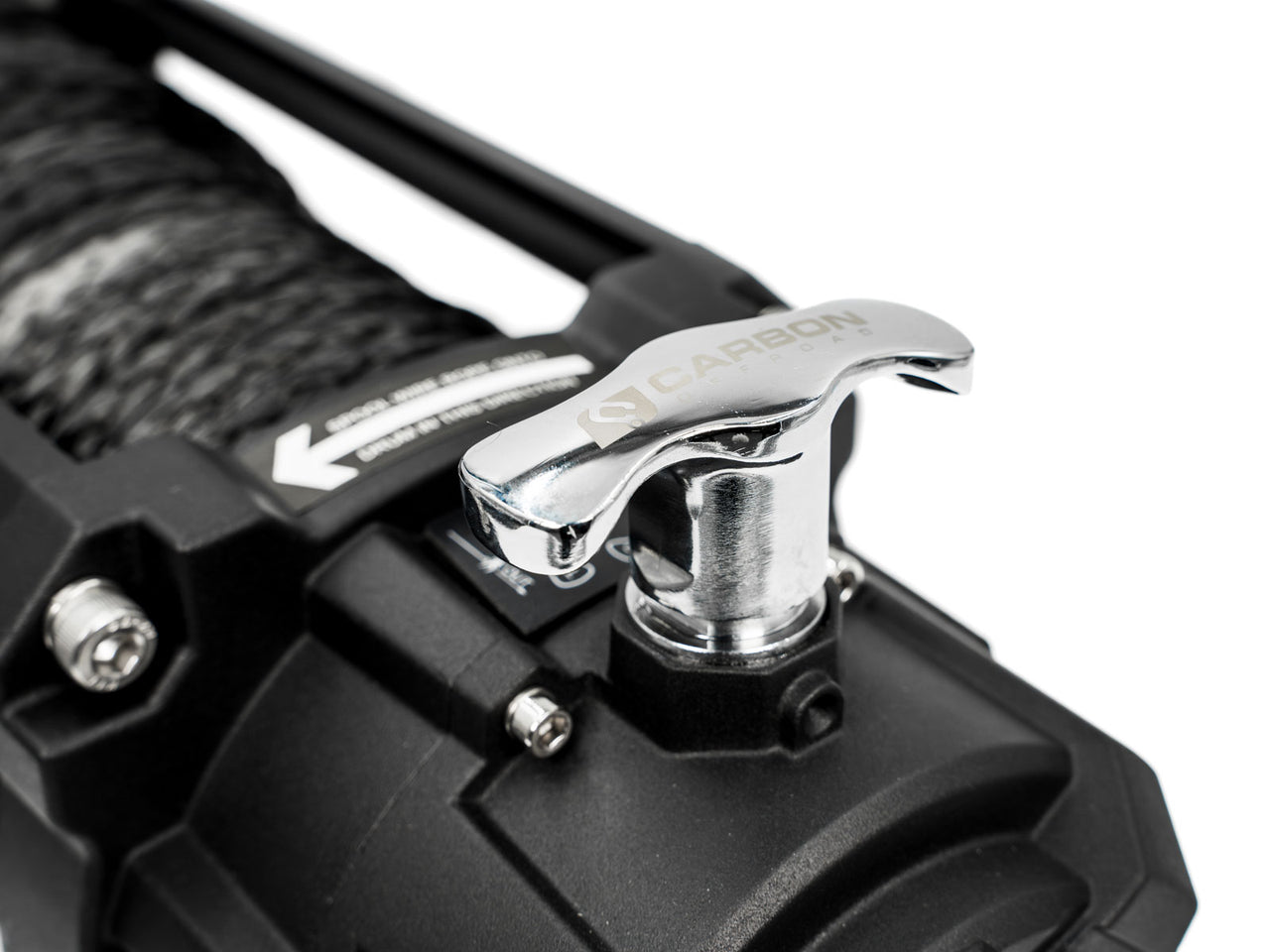

  • Reliable Clutch System: Features a rotating ring gear clutch operated by a stylish chrome freespool clutch handle with an etched Carbon Offroad logo.

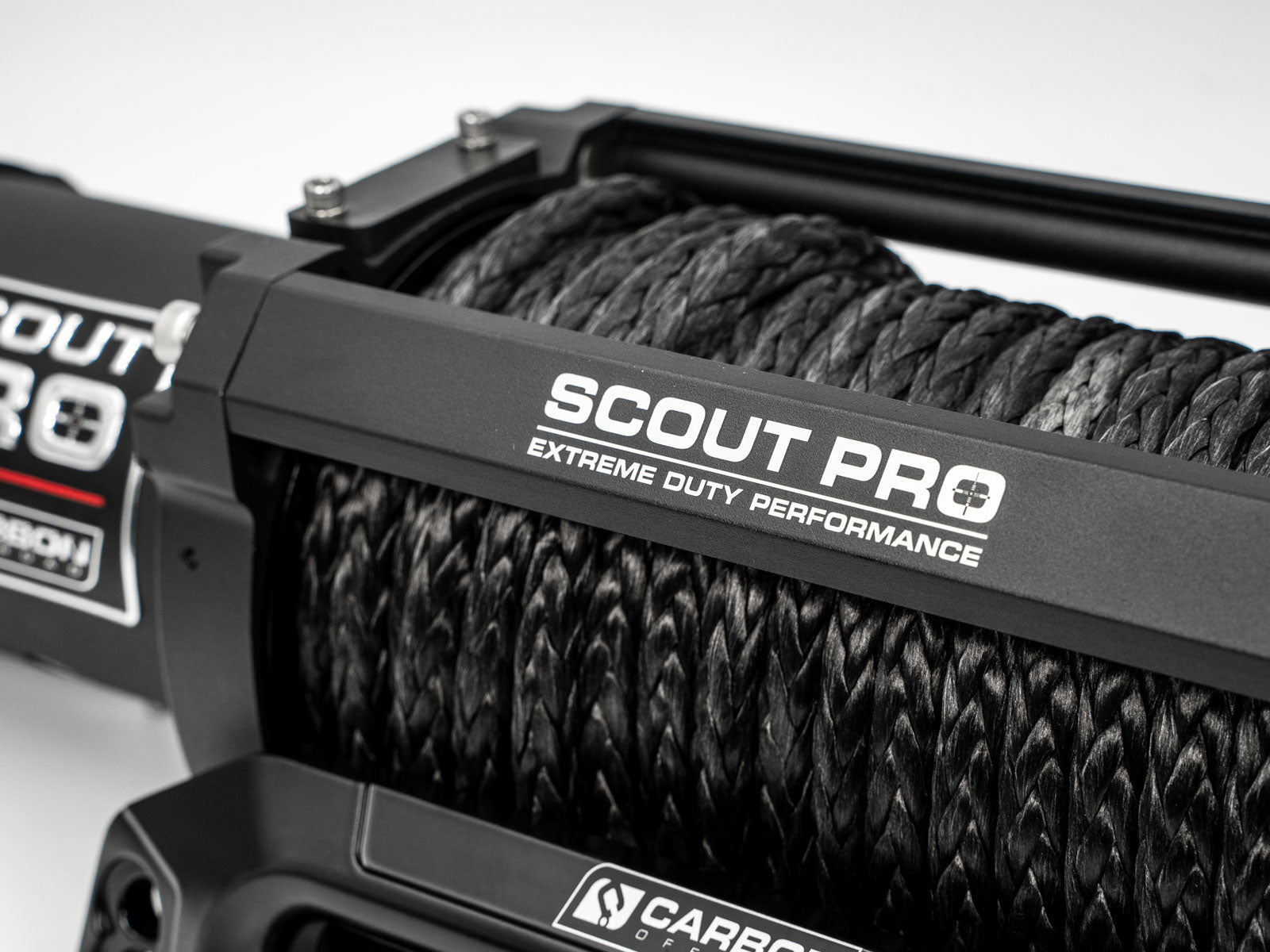

  • Optimised Winch Drum: The checker-knurled winch drum provides superior grip for the synthetic rope under heavy loads.
  • MegaPro Upgrades: Includes the Carbon Offroad MegaPro Premium CNC billet type 3 hard anodised multi-position fairlead for superior rope protection.
  • Comprehensive Warranty: Backed by a Lifetime Mechanical Warranty, 5-Year Electrical Warranty, and a 5-Year Water Ingress Protection Warranty.

Contents

1 x Carbon Offroad Scout Pro XD10 10000lb Winch (CW-XD10)
1 x Synthetic Winch Rope (24m x 10mm, black)
1 x Winch Rope Thimble
1 x MegaPro CNC Aluminium Fairlead

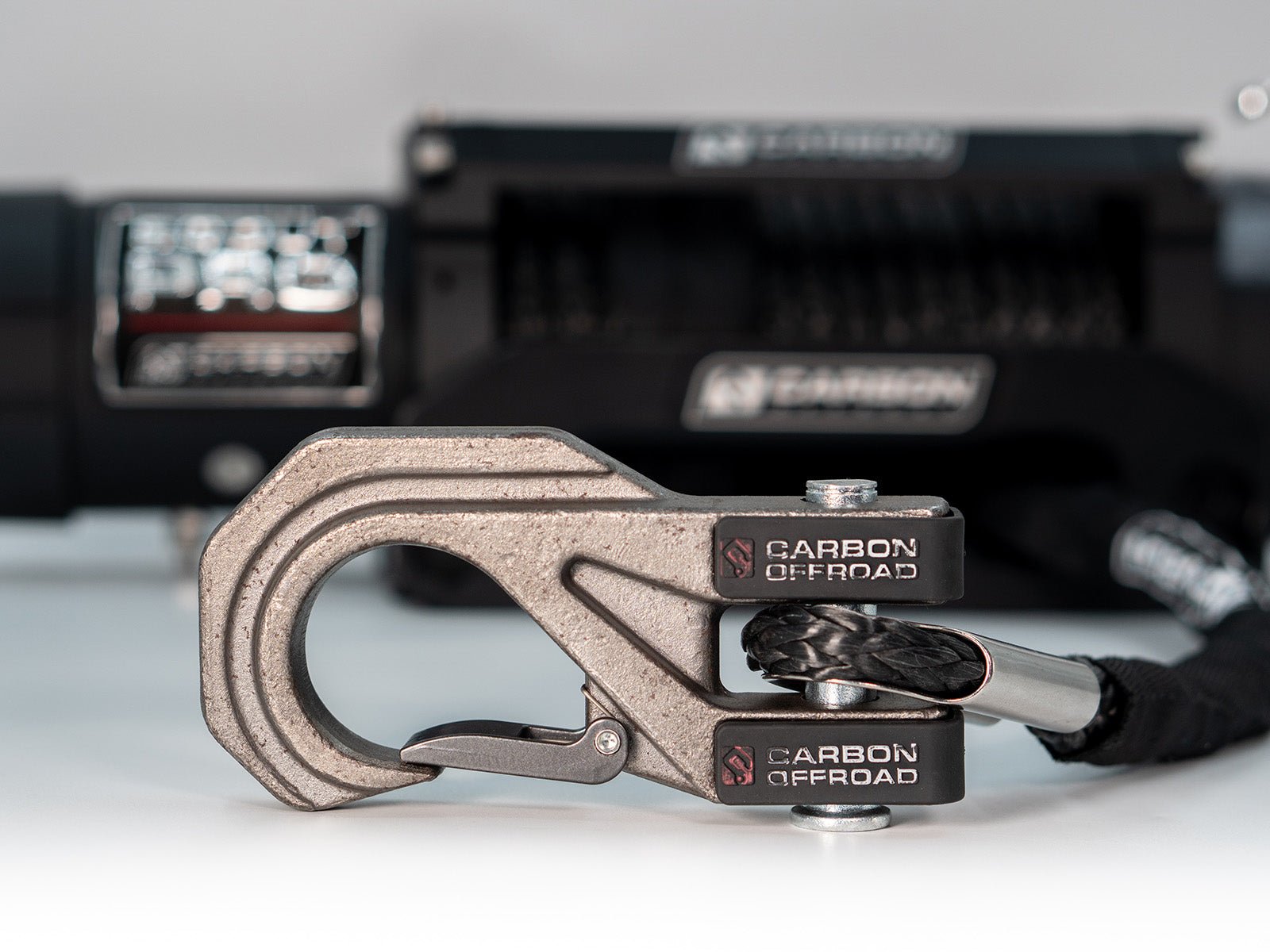

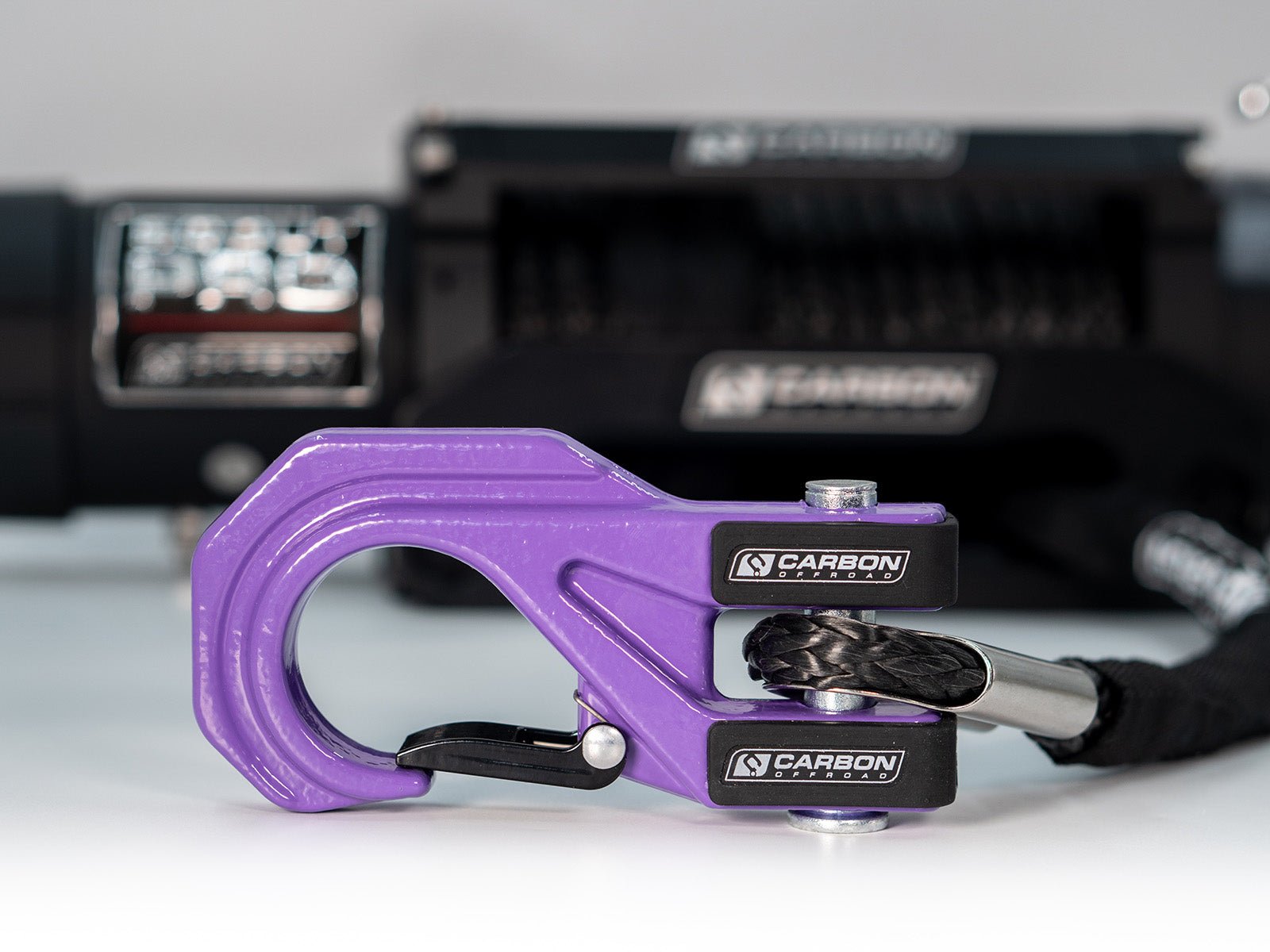

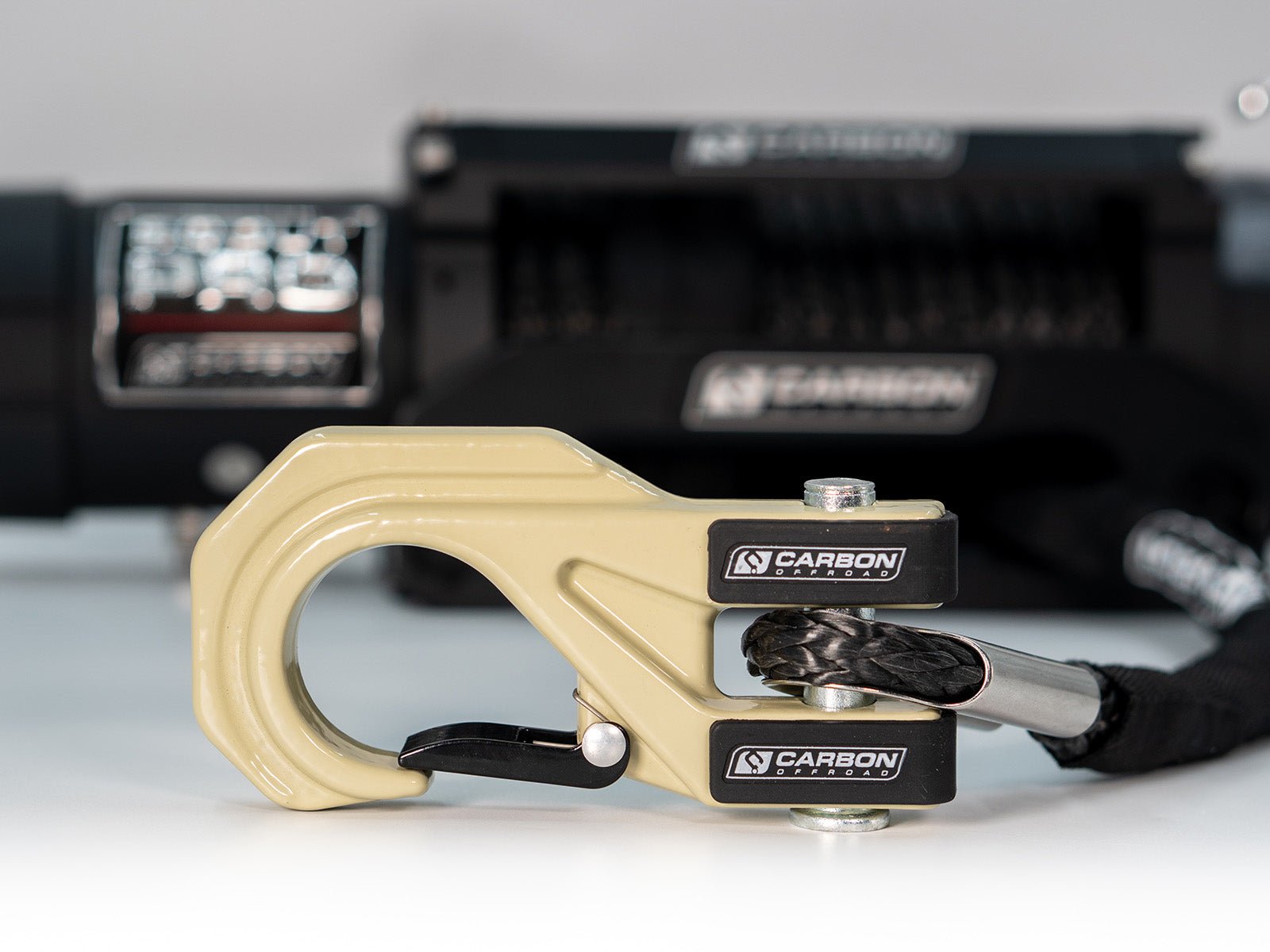

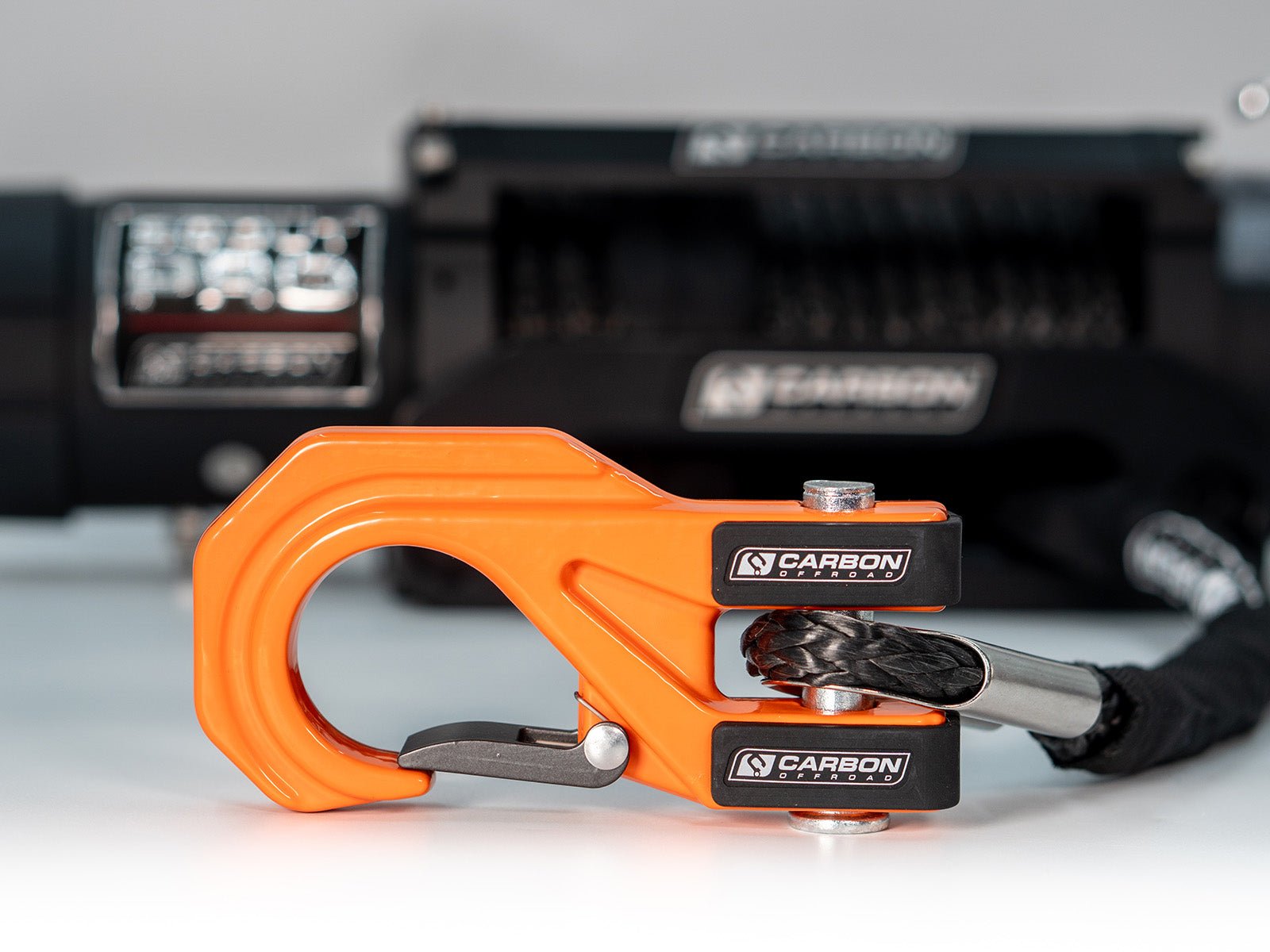

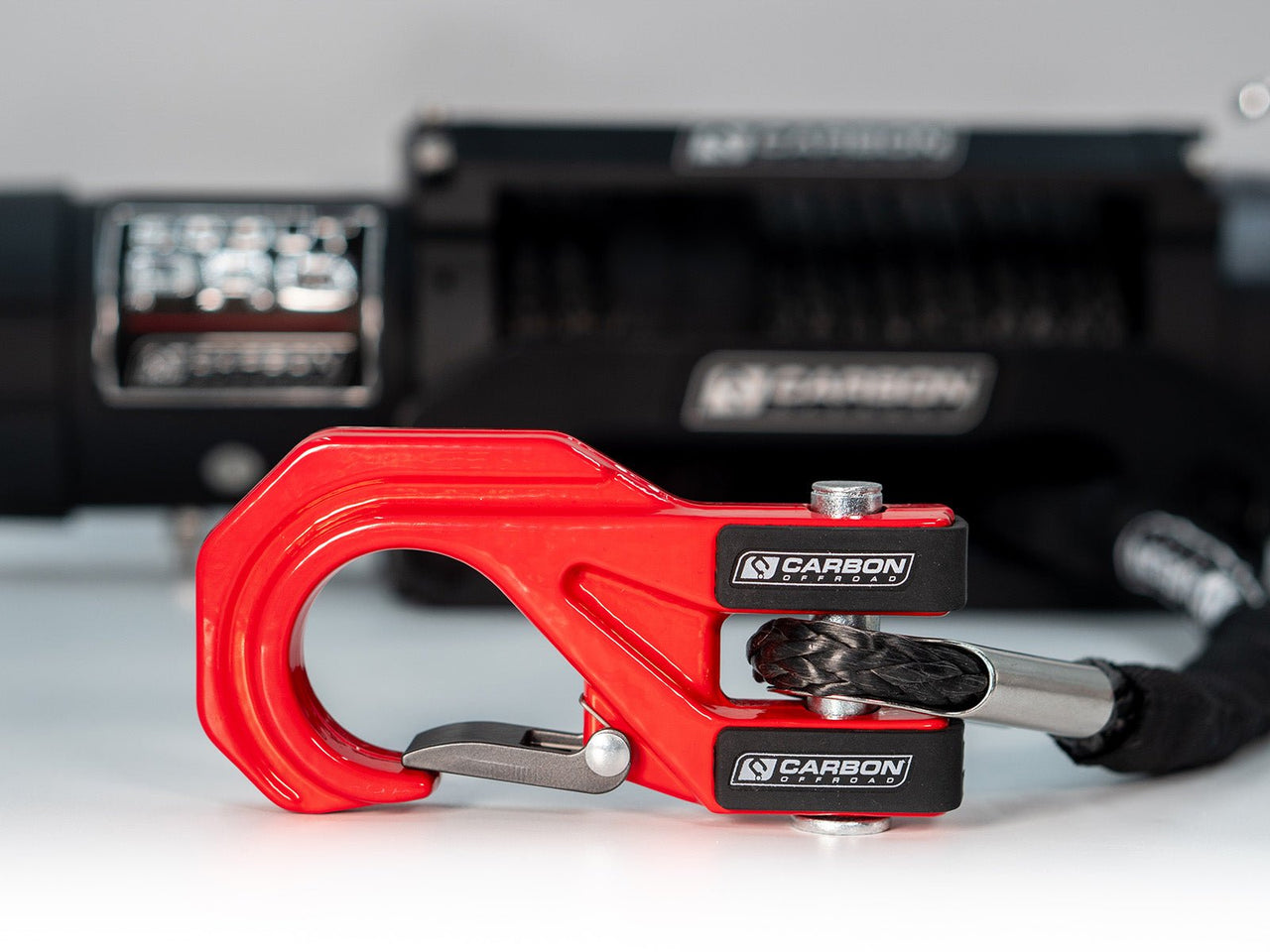

1 x Carbon Offroad MegaPro Winch Hook
1 x Wired Remote Control (3.7m lead)
1 x Wireless Remote Control
1 x Isolator Switch
1 x Winch Mounting Bolt Kit (mounting bolts, nuts, washers, fairlead bolts)



Feature Specification Metric (Imperial)
Part Number CW-XD10
Rated Line Pull 4536kg (10000lbs) single-line
Motor 12V DC 6.0 HP series wound (24V option available)
Geartrain 3-Stage Planetary
Gear Ratio 180:1
Clutch Rotating ring gear clutch
Brake Automatic brake in the motor bracket
Synthetic Rope 24m x 10mm (78.7ft x 3/8")
Fairlead MegaPro CNC billet type 3 hard anodised
Hardware 316 stainless steel

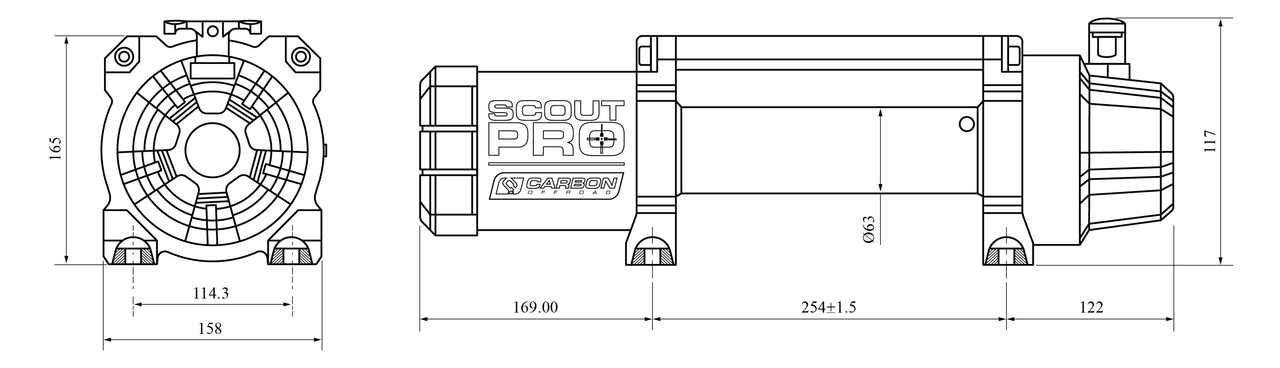

Drum Dimensions 63mm x 224mm (2.48" x 8.8")
Mounting Bolt Pattern 254mm x 114.3mm (10.0" x 4.5")
Recommended Battery 650 CCA minimum for winching
Winch Dimensions (L x W x H) 538 x 158 x 187mm (21.2" x 6.2" x 7.4")
Packing Dimensions (L x W x H) 580 x 200 x 220mm (22.8" x 7.9" x 8.7")
Winch Weight (Bare) 19.0kg (41.9 lbs) with synthetic rope attached
Total Kit Weight 26.7kg (58.9 lbs) including control box, cables, bolts & fairlead



12V DC Performance Specs

Line Pull lbs (kgs) Line Speed ft/min (m/min) Motor Current (Amps) Rated Line Pull Position lbs (kgs)
0 31.8 (10.6) 60 1 / 10000 (4540)
4000 (1814) 10.8 (3.8) 190 2 / 8200 (3720)
6000 (2722) 8.5 (3.2) 250 3 / 6840 (3103)
8000 (3630) 6.2 (2.6) - 4 / 5820 (2640)
10000 (4540) 4.6 (2.1) 370 -
